Determining the Thermal Conductivity of Anisotropic Polymer Composites using the Hot Disk TPS

Polymers are an incredibly diverse area of science, as their nature is determined by their components, of which there are infinite possibilities. A polymer is a large molecule that is made of many small molecules arranged in a simple, repeating structure (Figure 1). Plastics are one of the most common synthetic polymers. Traditionally, polymer resins have had low thermal conductivities; raising this value would give this class of materials an entirely new range of applications. Incorporating a conductive filler into the polymer is one way to achieve a better thermal conductivity. Keith et al. (2006) used this method to raise the thermal conductivity of Vectra A950RX, a liquid crystal polymer. They determined the effect that the addition of varying amounts of two carbon fiber fillers to the liquid crystal polymer had on through plane and in plane thermal conductivity, using the Hot Disk Thermal Conductivity System.

Thermal Conductivity Applications Anisotropic Polymers

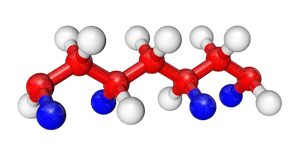

Figure 1. Model illustrating a basic polymer structure.

Keith et al. (2006) selected Fortafil 243 and Panex 30 as the carbon fiber fillers that would be added to the liquid crystal polymer. Both of these fillers have high weight percentages of carbon, Panex 30 is over 99% carbonized. Single filler composites with various amount of a filler were produced for testing. Two thermal conductivity testing methods were used to measure the through plane thermal conductivity of the composite samples, the guarded heat flow meter, and the Hot Disk TPS. However, only the TPS system is capable of performing in plane measurements, making it an ideal thermal conductivity instrument for testing highly anisotropic materials such as liquid crystal polymers. The TPS technique can produce both isotropic and anisotropic measurements during a single test (Figure 2).

Thermal Conductivity Applications Anisotropic Comparison

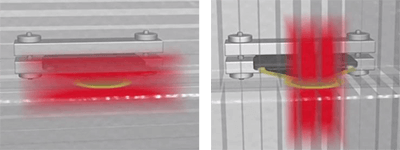

Figure 2. Diagram comparing how heat from the Hot Disk sensor can move when working with anisotropic materials. The image on the left depicts a material that transfers more heat radially, like the composites created by Keith et al. (2006). The image on the right depicts a material that transmits most of the heat axially.

When performing an anisotropic measurement with the TPS, the sensor is placed so that it is perpendicular to the normal axis and parallel with the planar axis (Figure 2). The Hot Disk sensor used for thermal conductivity measurement at temperatures up to 300°C is composed of a nickel foil spiral surrounded by a Kapton insulator. Two identical sample pieces are sandwiched on either side of the two-sided sensor. Probing depth is an important factor to consider when performing measurements, the parameters for testing with the Hot Disk TPS stipulate that the heat created by the Hot Disk does not reach the edge of the sample during the test. A variety of sensor sizes are available to enable each user to select a size that works best for their sample. The Hot Disk anisotropic software module ensures that anisotropic measurements are performed accurately.

Transient Plane Method Comparison Two-Sided Sensor

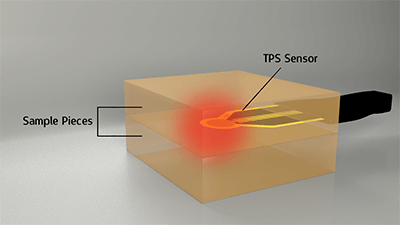

Figure 3. Diagram indicating the traditional placement of a two-sided Hot Disk sensor between two sample pieces. The set up used by Keith et al. (2006) used an extra sample piece on each side.

Keith et al. (2006) discovered that both the Panex 30 and Fortafil 243 composites had similar through-plane thermal conductivity values up to a filler volume of 40%. Once this threshold was crossed, Panex 30 samples returned higher values. In-plane thermal conductivity results revealed a different trend; as all samples containing Panex 30 had a higher thermal conductivity than those containing the equal filler % of Fortafil 243. Once Keith et al. (2006) had obtained the data for through plane and in plane thermal conductivities, they successfully developed a model that would quantify the relationship between those two values and the volume fraction of each carbon filler added to the liquid crystal polymer matrix. In doing so, they created the ability to be able to predict the in plane thermal conductivity from results of previous papers that had only looked at the through plane thermal conductivity.

Keith et al. (2006) prepared these composites with the goal of developing a possible material for use as a bipolar plate in fuel cells. Bipolar plates play an integral role in the function of a fuel cell as they separate the anode from the cathode in addition to providing a barrier between hydrogen and oxygen gases. These plates must have a high thermal conductivity and low gas permeability. Liquid crystal polymer is an excellent candidate for this type of application as is has low gas permeation rates, is dimensionally stable, and is resistant to the acidic conditions of the fuel cell. By adding carbon fibers and producing a composite with a thermal conductivity value within the range needed for a bipolar plate, scientists are one step closer to producing a new product that will help to further develop this market.

Note: For detailed results from this study and to compare the data produced by the Hot Disk TPS and guarded heat flow meter from measurements on the same samples, please follow the link for this scientific paper in the reference section.

Learn More About Hot Disk Transient Plane Source (TPS)

The Hot Disk Transient Plane Source (TPS) technique allows for precise thermal conductivity measurement of a huge array of materials ranging in thermal conductivity from 0.005 to 1800 W/m∙K . TPS is capable of measuring bulk and directional thermal properties of solids, liquids, pastes and powders.


Fuel Cell Markets. Bipolar Plates Portal Page. Fuel Cell Markets (Online). Available at:,1,1,2564.html [Accessed: November 2, 2015] (link removed).

Keith, J.M., King, J.A., Miller, M.G., Tomson, A.M. 2006. Thermal Conductivity of Carbon Fiber/Liquid Crystal Polymer Composites. Journal of Applied Polymer Science. 102: 5456-5462.

The Plastics Industry Trade Association. 2015. Definition of Resins. Plastics Industry (Online). Link Removed: [Accessed: November 2, 2015].

UL Prospector. Liquid Crystal Polymer (LCP) Plastic. UL (Online). – Link Removed [Accessed: November 2, 2015]. (link removed)
