Thermal Conductivity Laboratory Instrument Portable Meter Isotropic Testing Module

Standard Testing Module

Bulk measurement of homogenous and heterogeneous materials

The TPS Thermal Conductivity Analyzer utilizes a sensor element in the shape of a double spiral. This TPS sensor acts both as a heat source for increasing the temperature of the sample and a ”resistance thermometer” for recording the time dependent temperature increase. In most cases the sensor element is made of a 10 μm thick Nickel-metal double spiral, with precisely designed dimensions (width, number of windings and their radii). This spiral is supported by a material to protect its particular shape, give it mechanical strength and keep it electrically insulated. The polyimide ”Kapton” is such a material, which can be used throughout the temperature range from -160 to 300°C. A ”Mica” material is also available as supporting / insulating material and in that case the upper limit of the temperature range is extended to 1000°C.

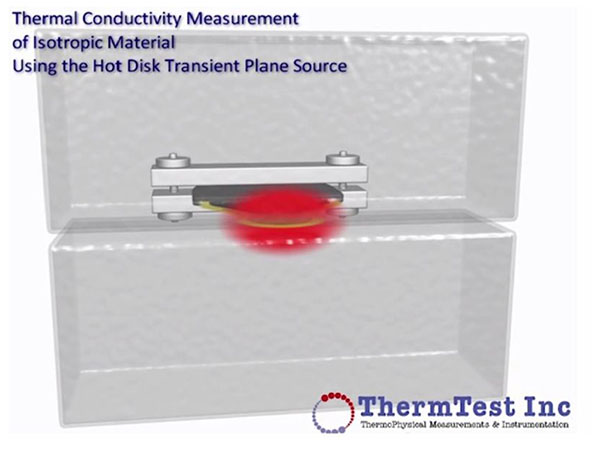

The encapsulated Ni-spiral sensor is then sandwiched between two halves of the sample (solid samples), or embedded in the sample (powders, liquids). During a pre-set time, 200 resistance recordings are taken, and from these the relation between temperature and time is established. A few parameters, like the “Output of Power” to increase the temperature of the spiral, the “Measuring Time” for recording 200 point and the size of the sensor are used to optimize the settings for the experiment.

Specifications

TPS 3500

Thermal Range: 0.005 to 1800 W/mK
Temperature: -160°C to 1000°C

TPS 2500 S

Thermal Range: 0.005 to 1000+ W/mK
Temperature: -160°C to 1000°C

TPS 2200

Thermal Range: 0.01 to 500 W/mK
Temperature: -160°C to 750°C

TPS 1500

Thermal Range: 0.01 to 20+ W/mK
Temperature: -160°C to 1000°C

TPS 500 S

Thermal Range: 0.03 to 200 W/mK
Temperature: -160°C to 300°C

TPS 500

Thermal Range: 0.03 to 100 W/mK
Temperature: -160°C to 200°C

TPS M1

Thermal Range: 0.03 to 40 W/mK
Temperature: -40°C to 60°C
Thermal Conductivity Testing Bulk
