Two-sided Sensors

Kapton Sensor

TPS-two-sided-sensor

For Standard, Anisotropic, Slab, and 1-D measurements.
from -160 to 300°C (Air) and 400°C (Ni):

HTK TPS Sensor: 5501

Sensor Design Radius (mm)
7531 0.492
7577 2.001
5465 3.189
5501 6.403
4921 9.719
8563 9.908
4922 14.61
5599 29.4

Cable options for Kapton sensors:
Standard (RTK): -160°C to 60°C
Silicone (Si): -160°C to 180°C

* The RTK and Si cable options can be used with the included standard sample holder.
High temperature TPS PEEK sensor adapter: -160 to 300°C / 400°C.
* This option is a universal cable system for use with all sensors and included sample holders.

Kapton - TPS 3500
Sensor Design Radius (mm)
7531 0.492
7577 2.001
5465 3.189
5501 6.403
4921 9.719
8563 9.908
4922 14.61
5599 29.4
Kapton - TPS 2500 S
Sensor Design Radius (mm)
7531 0.492
7577 2.001
5465 3.189
5501 6.403
4921 9.719
8563 9.908
4922 14.61
5599 29.4
Kapton - TPS 2200
Sensor Design Radius (mm)
7577 2.001
5465 3.189
5501 6.403
4921 9.719
8563 9.908
4922 14.61
5599 29.4
Kapton - TPS 1500
Sensor Design Radius (mm)
5465 3.189
5501 6.403
4921 9.719
8563 9.908
4922 14.61
5599 29.4
Kapton - TPS 500 S
Sensor Design Radius (mm)
7577 2.001
5465 3.189
5501 6.403
Kapton - TPS 500
Sensor Design Radius (mm)
5465 3.189
5501 6.403
Kapton - TPS M1
Sensor Design Radius (mm)
8563 9.908

* The RTK and Si cable options can be used with the included standard sample holder.
High temperature TPS PEEK sensor adapter: -160 to 300°C / 400°C.
* This option is a universal cable system for use with all sensors and included sample holders.

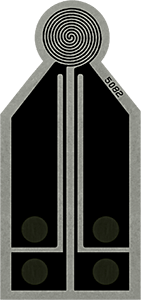

Mica Sensor

TPS-two-sided-sensor

For measurements at temperatures from 300°C to about 1000°C:

Sensor Design Radius (mm)
5465 3.189
5082 6.631
4921 9.719
4922 14.610
5599 29.40

The high temperature Mica sensors require a special high temperature sensor and sample holder. Please visit the TPS Sample Holders & Cables section for complete list of options.

Mica - TPS 3500
Sensor Design Radius (mm)
5465 3.189
5082 6.631
4921 9.719
4922 14.610
5599 29.40
Mica - TPS 2500 S
Sensor Design Radius (mm)
5465 3.189
5082 6.631
4921 9.719
4922 14.610
5599 29.40
Mica - TPS 2200
Sensor Design Radius (mm)
5465 3.189
5082 6.631
4921 9.719
4922 14.610
5599 29.40
Mica - TPS 1500
Sensor Design Radius (mm)
5465 3.189
5082 6.631
4921 9.719
4922 14.610
5599 29.40

The high temperature Mica sensors require a special high temperature sensor and sample holder. Please visit the TPS Sample Holders & Cables section for complete list of options.
