Thermal Conductivity One Dimensional Testing Module

1-Dimensional

One dimensional thermal conductivity testing of elongated materials such as a rod

The 1-D Module is designed for the thermal conductivity measurement along the elongated length of a material, such as a rod or core sample. 1-Dimensional Module is intended for measurement of solid materials along the elongated length of a materials, such as sample rod or sample core. Depending on the cross section of a sample, the largest available TPS sensor, which the sample will just cover is best. Power levels and test times are selected in the same manner as the standard module. This module is particularly powerful for testing complex materials, such as heterogonous or anisotropic materials in an elongated shape, which are “particularly” difficult to test with standard testing techniques. This testing can be done in the standard two-sided or single-sided formats.

Specifications

TPS 3500

Thermal Range: 1 to 1800 W/mK
Temperature: -160°C to 1000°C
Minimum dimensions: 2.5 mm diameter or square

TPS 2500 S

Thermal Range: 1 to 1000+ W/mK
Temperature: -160°C to 1000°C
Minimum dimensions: 5 mm diameter or square

TPS 1500

Thermal Range: 1 to 20+ W/mK
Temperature: -160°C to 1000°C
Minimum dimensions: 7 mm diameter or square

TPS 500 S

Thermal Range: 1 to 200 W/mK
Temperature: -160°C to 300°C
Minimum dimensions: 4.5 mm diameter or square

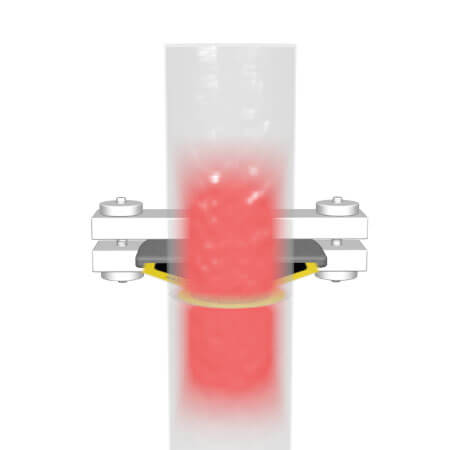

Thermal Conductivity Testing 1-D
